PHYSICAL SPECIFICATION

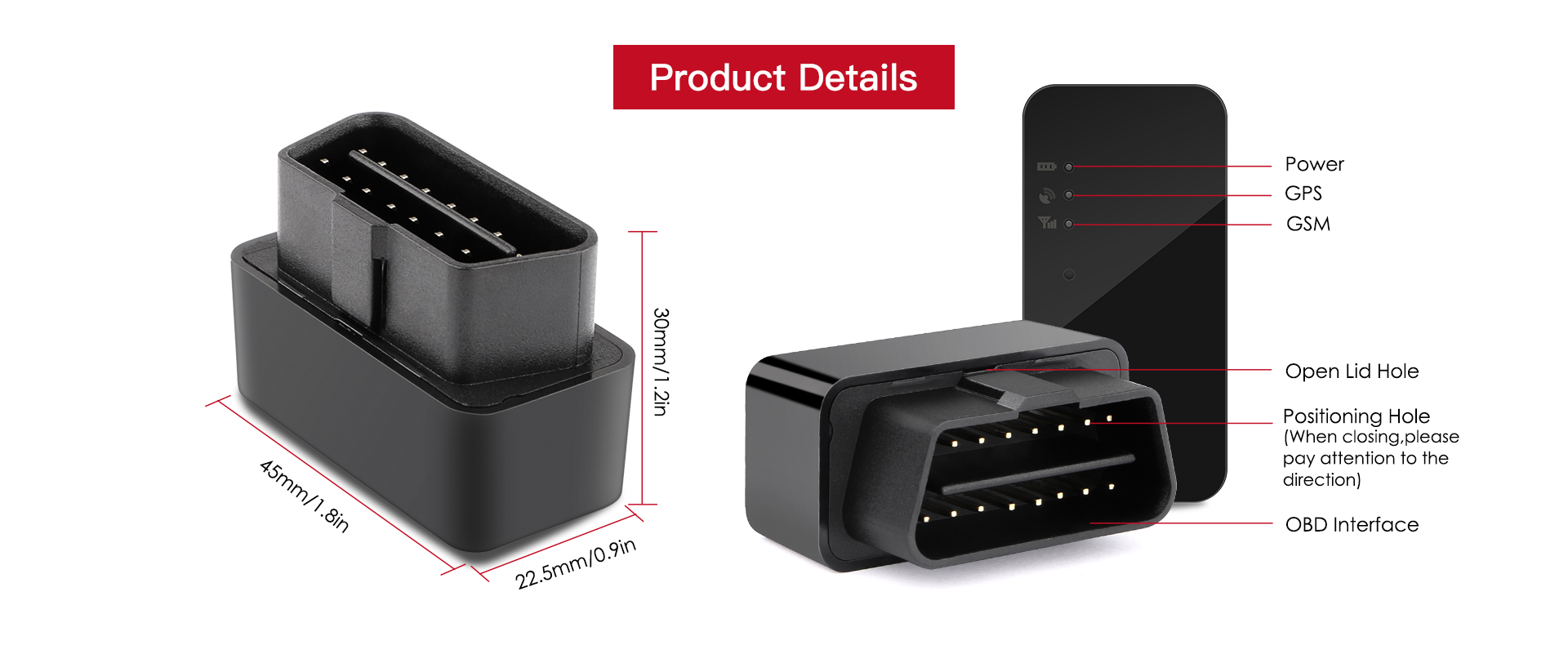

Dimensions45x 22.5 x 30mm (L x W x H)
Weight30g
MODULE
Name
Technology
GSM Specification
GSM frequency900/1800 MHz
GPRSClass12, TCP/IP
Memory32+32Mb
Phase errorRMSPE<5,PPE<20
Max outputGSM850/GSM900:33±3dBm     GSM1800/GSM 1900:30±3dBm
Max frequency error±0.1 ppm
GPS Specification
GPS chipset

MTK high sensitivity chip

FrequencyL1,1575.42MHz C/A code
GPS channel66
Location accuracy<10 meters
Tracking sensitivity-165dBm
Acquisition sensitivity-148dBm
TIFF(open sky)Avg.hot start≤1sec           Avg.cold start≤32sec
Function & Package
AntennaBuilt-in GPS antenna, GSM quad-band antenna
LED indicatorPower, GPS ,GSM

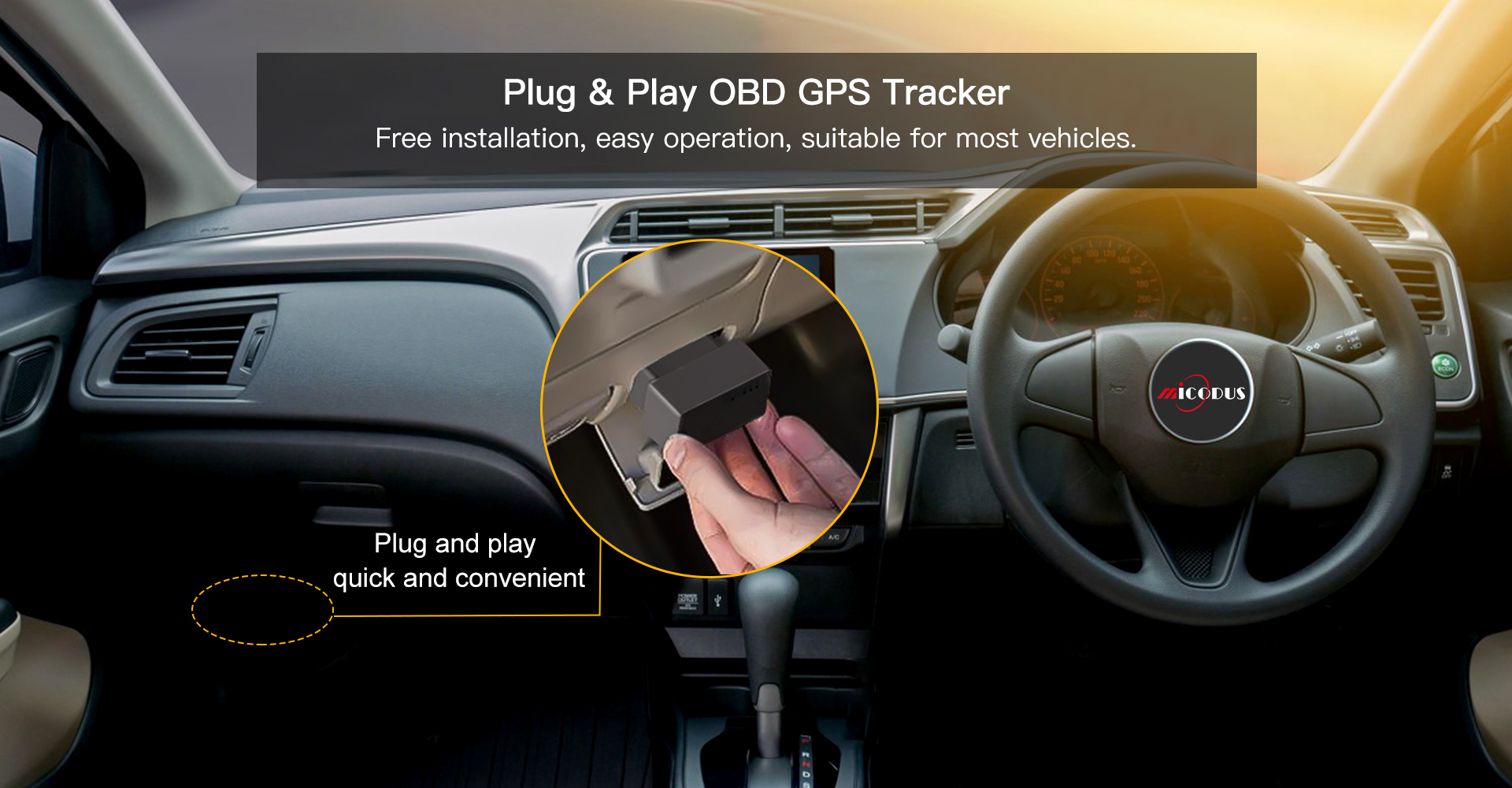

ConnectorOBD standard port
Battery50mAh /3.7V lithium-polymer battery
Standby current5mA
Working voitage / current9-36VDC/32mA(12VDC)
Operating temperature-20°C~70°C
Operating humidity5%~95%,non-dense
