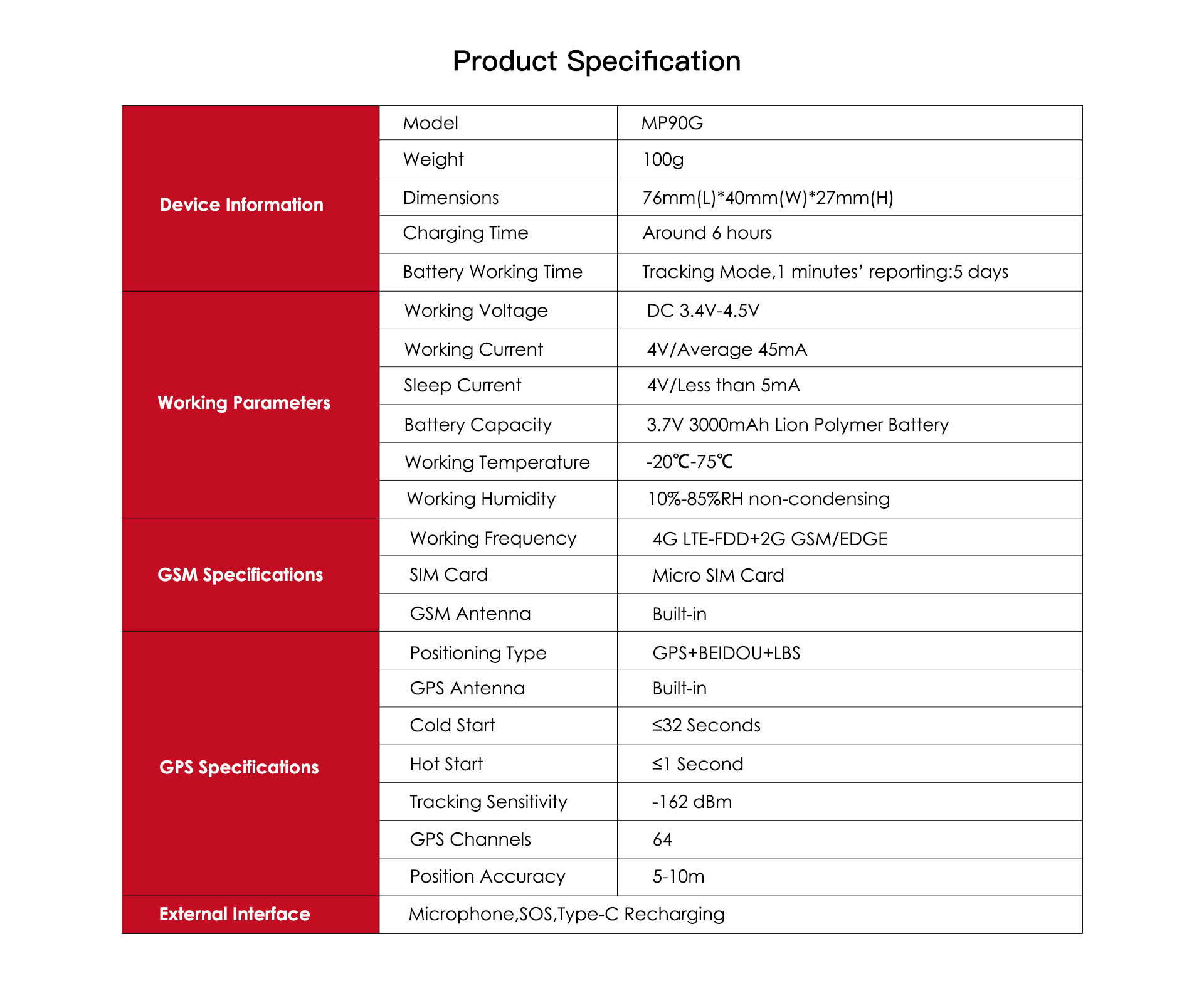

PHYSICAL SPECIFICATION

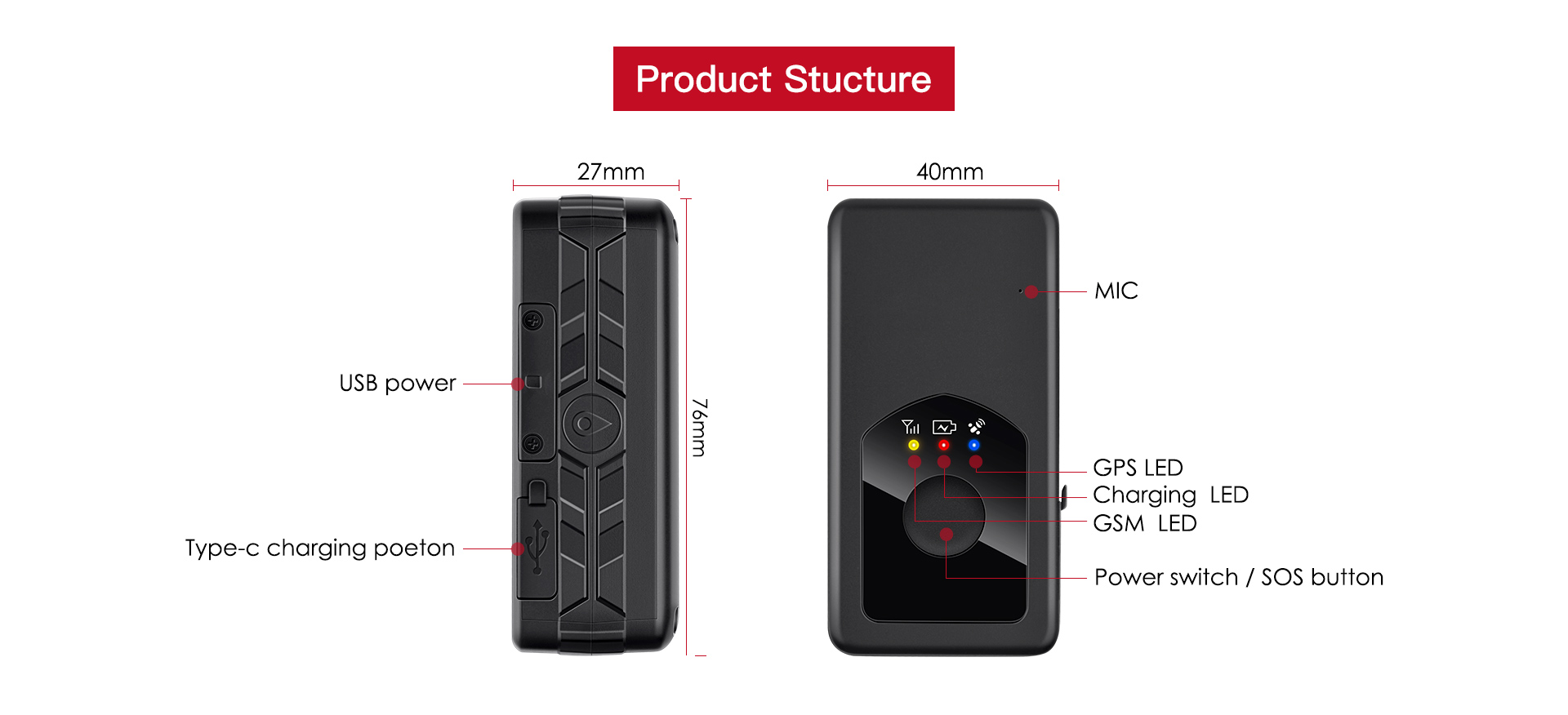

Dimensions76 x 40 x 27mm (L x W x H)
Weight120g
MODULE
Name
Technology
GNSS
Positioning TypeGPS+BEIDOU+LBS
GPS AntennaBuilt-in
Cold Start≤32 Seconds
Hot Start≤1 Second
Tracking sensitivity-162 dBm
GPS Channels64
Position Accuracy5-10m
CELLULAR
Working Frequency

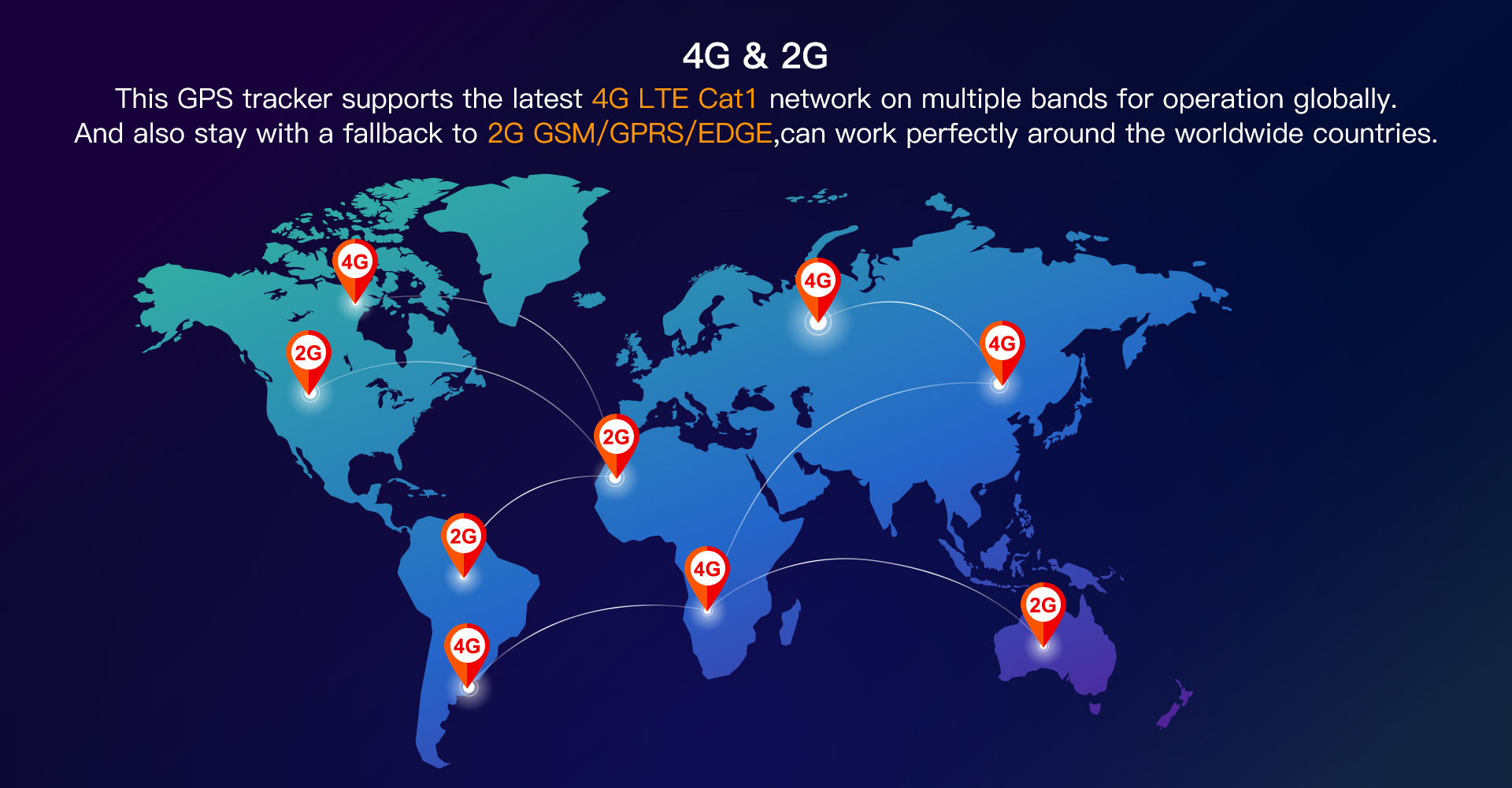

4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

2G GSM/GPRS/EDGE: 850/900/1800/1900MHz
SIM Card

Micro SIM Card

Cellular AntennaBuilt-in
POWER
Working VoltageDC 3.4V - 4.5V
Working Current4V/Average 45mA
Sleep Current4V/less than 5mA

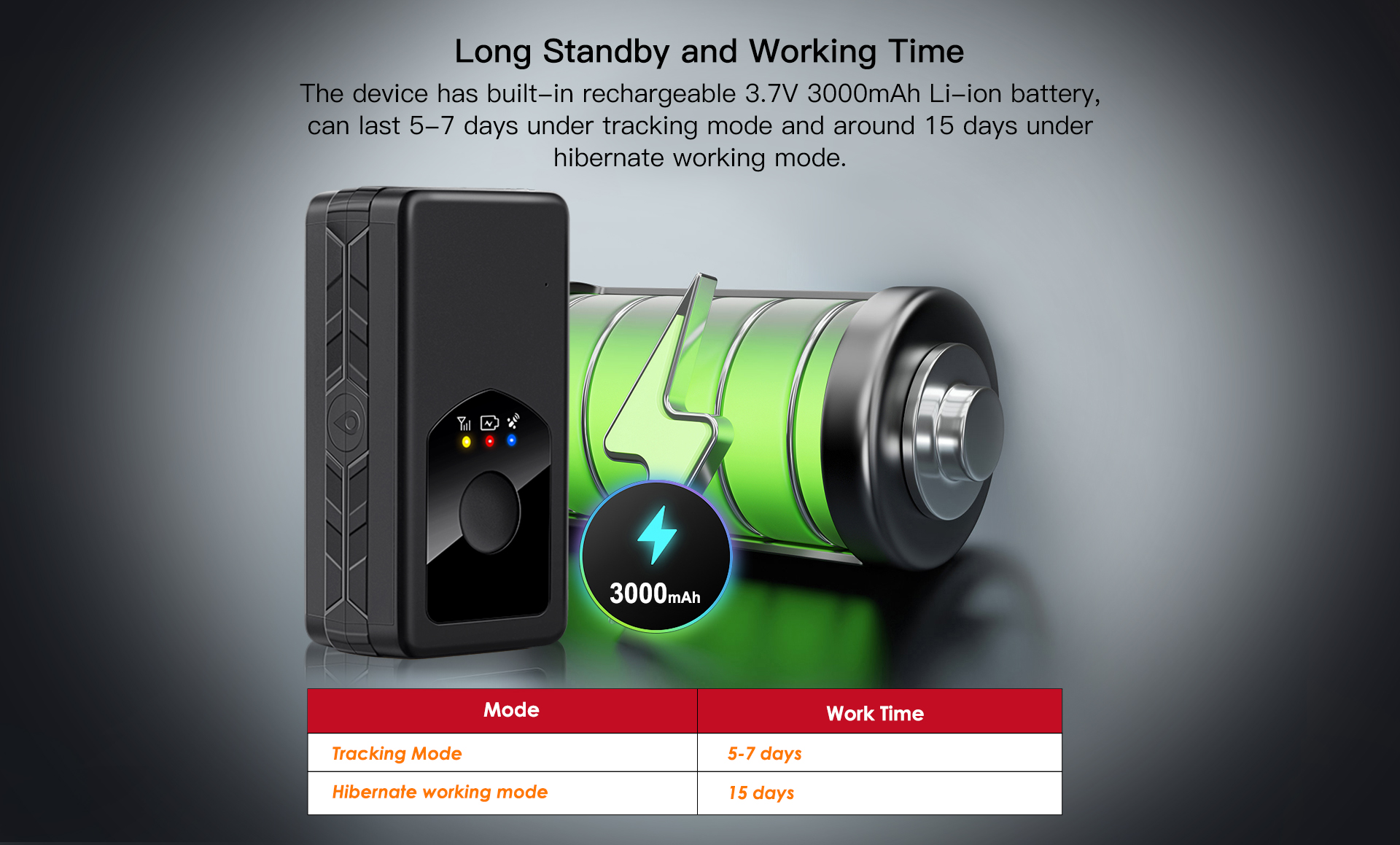

Battery Capacity3.7V 3000mAh Lion Polymer battery
