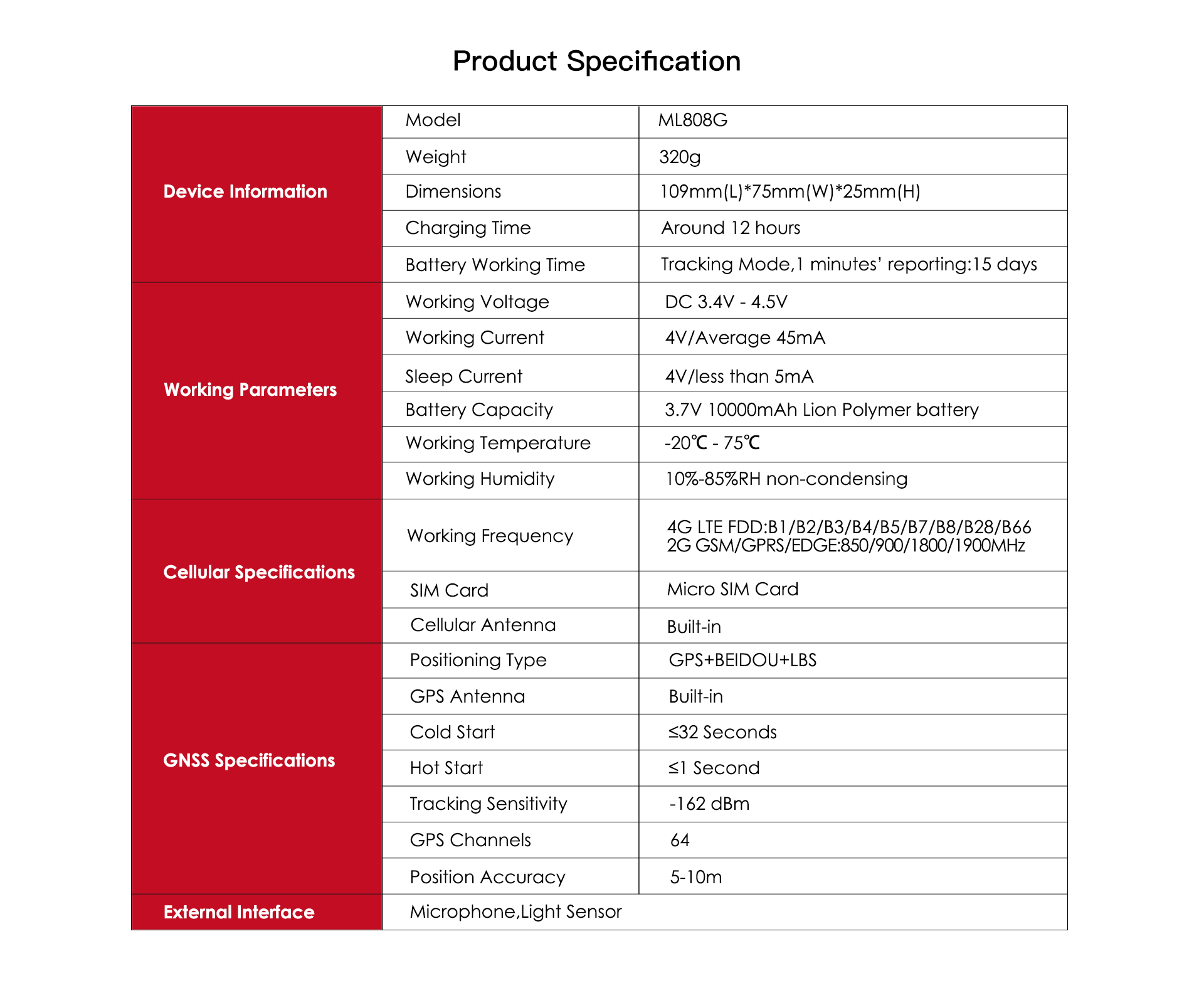

| PHYSICAL SPECIFICATION | |
|---|---|

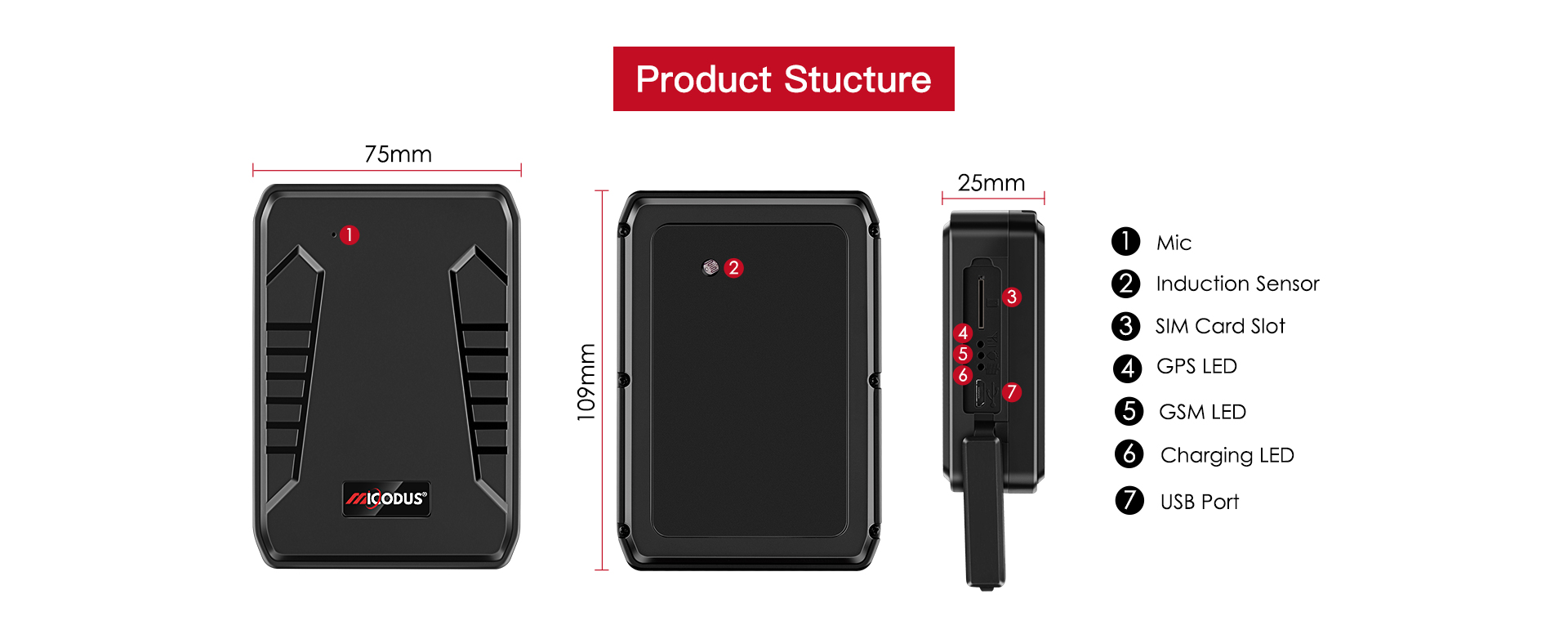

| Dimensions | 109 x 75 x 25mm (L x W x H) |
| Weight | 320g |
| MODULE | |
|---|---|
| Name | |
| Technology | |
| GNSS | |
|---|---|
| Positioning Type | GPS+BEIDOU+LBS |
| GPS Antenna | Built-in |
| Cold Start | ≤32 Seconds |
| Hot Start | ≤1 Second |
| Tracking sensitivity | -162 dBm |
| GPS Channels | 64 |
| Position Accuracy | 5-10m |
| CELLULAR | |
|---|---|
| Working Frequency | 4G LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| 2G GSM/GPRS/EDGE: 850/900/1800/1900MHz | |
| SIM Card | Micro SIM Card |
| Cellular Antenna | Built-in |
| POWER | |
|---|---|
| Working Voltage | DC 3.4V - 4.5V |
| Working Current | 4V/Average 45mA |
| Sleep Current | 4V/less than 5mA |
| Battery Capacity | 3.7V 10000mAh Lion Polymer battery |
